Analoge microscopen

 Een digitale microscoop kopen? Bekijk hieronder ons aanbod. Ben je niet zeker van je keuze? Contacteer ons en laat je adviseren.

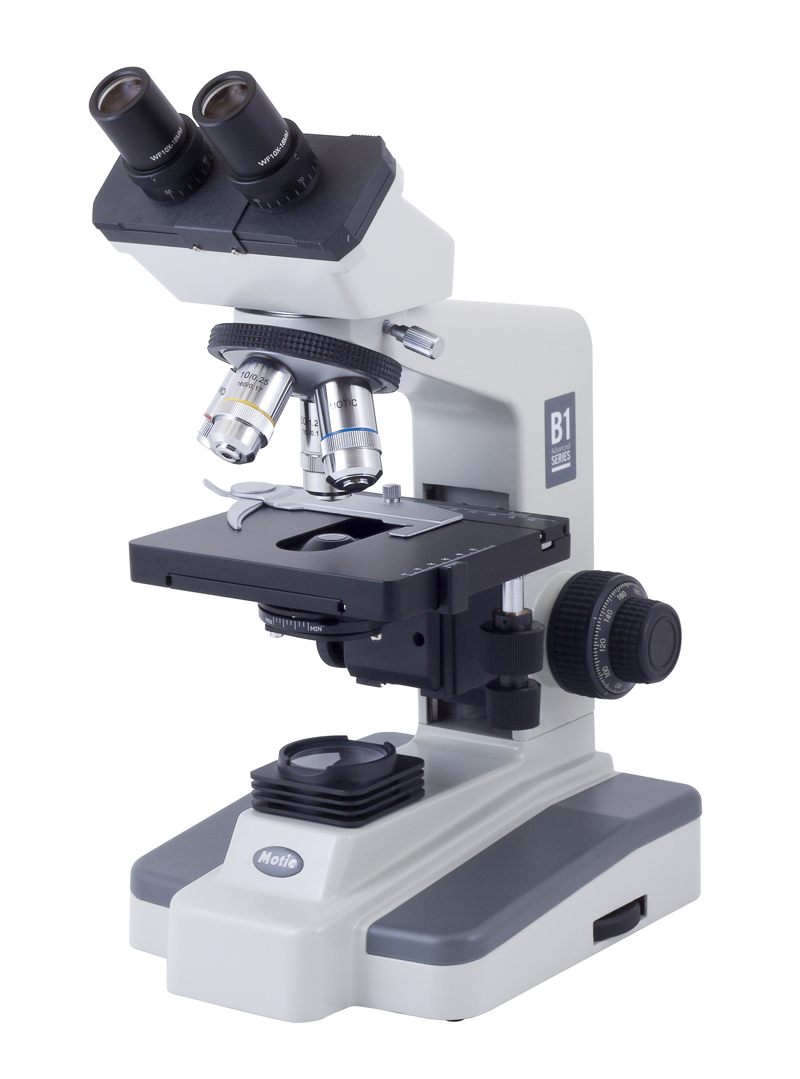

Motic B1-220 A

20120917164611996
€ 635,-
Levertijd: 2 - 3 werkdagen
Test dit product uit in de winkel


Dit product kan enkel in onze winkel gekocht worden.

Betaal veilig online: visa mastercard bancontact belfius ideal ing kbc paypal

This full-sized microscope range provides users with a sturdy and solid base for professional microscopy.

The B1 Series is available with many accessories to suit most microscopy requirements in academic, veterinarian and simple lab tasks.



B1-220A
  Specification Details
Optical system Finite Optical System, 160mm
Observation tube Binocular, sliding type
Interpupillary distance 55-75mm
Inclination 45 inclined, 360 rotating
Eyepiece(s) WF 10X / 18mm
Nosepiece Quadruple revolving nosepiece with click stops
Objective classification Achromatic, DIN
Objective information

4X / 0.10 (WD 6.8mm), 10X / 0.25 (WD 2.4mm),

40X / 0.65/S (WD 0.53mm), 100X / 1.25/S-Oil (WD 0.13mm)

Objective mounting thread W 4/5" x 1/36" (RMS standard)
Stage Built-in low position coaxial mechnical stage with sample holder
Stage size 140 x 135mm
Mechanical stage X & Y range 78 x 50mm
Upper limit stop Preset but adjustable
Condenser  Rack & pinion focusable 1.25 N.A. Abbe Condenser with iris diaphragm and filter holder
Focus mechanism Coarse and fine focusing system with tension adjustment
Fine focus precision 2um minimum increment
Z-axis movement 27mm
Illumination 12V / 20W Halogen illumination with intensity control
Transformer Internal
Power supply 220 - 240V (CE)
Accessories included Blue, yellow and green filters, dust cover and immersion oil
Length x Width x Height 245 x 190 x 380
Weight (kg) 6.8 kg

This full-sized microscope range provides users with a sturdy and solid base for professional microscopy.

The B1 Series is available with many accessories to suit most microscopy requirements in academic, veterinarian and simple lab tasks.



B1-220A
  Specification Details
Optical system Finite Optical System, 160mm
Observation tube Binocular, sliding type
Interpupillary distance 55-75mm
Inclination 45 inclined, 360 rotating
Eyepiece(s) WF 10X / 18mm
Nosepiece Quadruple revolving nosepiece with click stops
Objective classification Achromatic, DIN
Objective information

4X / 0.10 (WD 6.8mm), 10X / 0.25 (WD 2.4mm),

40X / 0.65/S (WD 0.53mm), 100X / 1.25/S-Oil (WD 0.13mm)

Objective mounting thread W 4/5" x 1/36" (RMS standard)
Stage Built-in low position coaxial mechnical stage with sample holder
Stage size 140 x 135mm
Mechanical stage X & Y range 78 x 50mm
Upper limit stop Preset but adjustable
Condenser  Rack & pinion focusable 1.25 N.A. Abbe Condenser with iris diaphragm and filter holder
Focus mechanism Coarse and fine focusing system with tension adjustment
Fine focus precision 2um minimum increment
Z-axis movement 27mm
Illumination 12V / 20W Halogen illumination with intensity control
Transformer Internal
Power supply 220 - 240V (CE)
Accessories included Blue, yellow and green filters, dust cover and immersion oil
Length x Width x Height 245 x 190 x 380
Weight (kg) 6.8 kg
