Analoge microscopen
Een digitale microscoop kopen? Bekijk hieronder ons aanbod. Ben je niet zeker van je keuze? Contacteer ons en laat je adviseren.

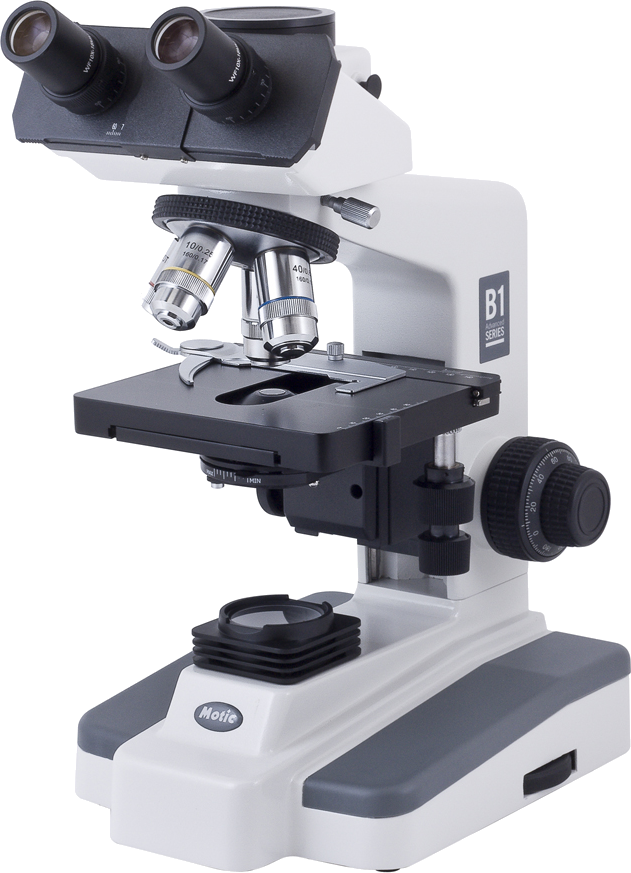

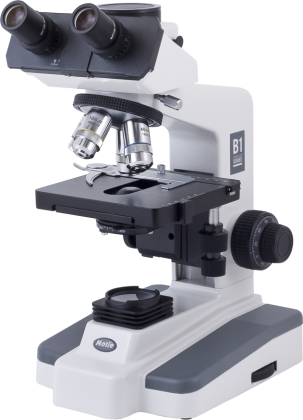

This full-sized microscope range provides users with a sturdy and solid base for professional microscopy.
The B1 Series is available with many accessories to suit most microscopy requirements in academic, veterinarian and simple lab tasks.
| B1-223A Specification Details |
||
| Optical system | Finite Optical System, 160mm | |
| Observation tube | Trinocular, sliding type | |
| Interpupillary distance | 55-75mm | |
| Trinocular light split | 100:0 / 20:80 | |
| Inclination | 30 inclined, 360 rotating | |
| Eyepiece(s) | WF 10X / 18mm | |
| Nosepiece | Quadruple revolving nosepiece with click stops | |
| Objective classification | Achromatic, DIN | |
| Objective information |
4X / 0.10 (WD 6.8mm), 10X / 0.25 (WD 2.4mm), 40X / 0.65/S (WD 0.53mm), 100X / 1.25/S-Oil (WD 0.13mm) |
|
| Objective mounting thread | W 4/5" x 1/36" (RMS standard) | |
| Stage | Built-in low position coaxial mechnical stage with sample holder | |
| Stage size | 140 x 135mm | |
| Mechanical stage X & Y range | 78 x 50mm | |
| Upper limit stop | Preset but adjustable | |
| Condenser | Rack & pinion focusable 1.25 N.A. Abbe Condenser with iris diaphragm and filter holder | |
| Focus mechanism | Coarse and fine focusing system with tension adjustment | |
| Fine focus precision | 2um minimum increment | |
| Z-axis movement | 27mm | |
| Illumination | 12V / 20W Halogen illumination with intensity control | |
| Transformer | Internal | |
| Power supply | 220 - 240V (CE) | |
| Accessories included | Blue, yellow and green filters, dust cover and immersion oil | |
| Length x Width x Height | 245 x 190 x 380 | |
| Weight (kg) | 6.8 kg | |
