Analoge microscopen

 Een digitale microscoop kopen? Bekijk hieronder ons aanbod. Ben je niet zeker van je keuze? Contacteer ons en laat je adviseren.

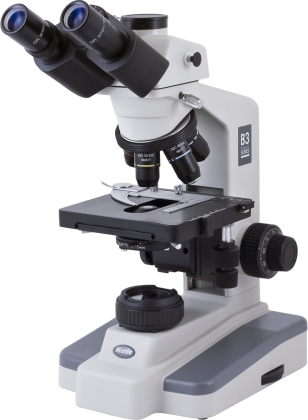

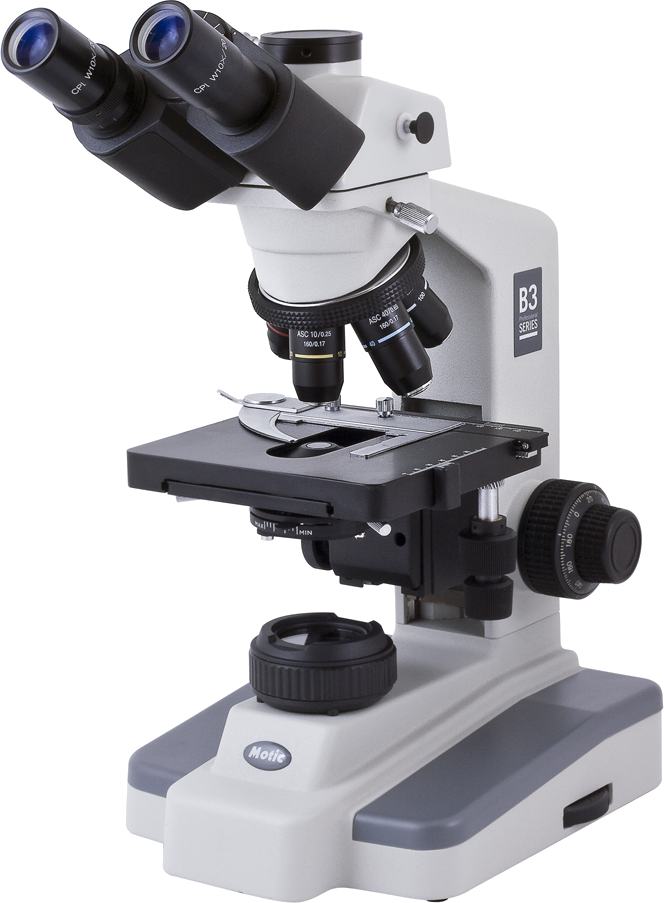

Motic B3-223 ASC

20120917164659122
€ 875,-
Levertijd: 2 - 3 werkdagen
Test dit product uit in de winkel


Dit product kan enkel in onze winkel gekocht worden.

Betaal veilig online: visa mastercard bancontact belfius ideal ing kbc paypal

With built-in Koehler Illumination and a Quintuple Nosepiece as standard, the B3 series offers users a stable platform for professional microscopy. Available in Achromatic Super Contrast or full Plan optics, this popular Motic series offers something for everyone.



B3-223ASC
  Specification Details
Optical system Finite Optical System, 160mm
Observation tube Trinocular head, siedentopf type
Interpupillary distance 55-75mm
Inclination 30 inclined, 360 rotating
Eyepiece(s) WF 10X / 20mm
Diopter adjustment Diopter adjustment on the left eyetube, +/- 5 diopter
Nosepiece Reversed quadruple revolving nosepiece with click stops
Objective classification ASC Achromatic Super Contrast, DIN
Objective information

4X / 0.10 (WD 17mm), 10X / 0.25 (WD 6.4mm),

40X / 0.65/S (WD 0.45mm), 100X / 1.25/S-Oil (WD 0.14mm)

Objective mounting thread W 4/5" x 1/36" (RMS standard)
Stage Built-in low position coaxial mechnical stage with sample holder
Stage size 140 x 135mm
Mechanical stage X & Y range 78 x 50mm
Upper limit stop Preset but adjustable
Condenser  Focusable and centrable 1.25 N.A. Abbe Condenser with iris diaphragm and filter holder
Focus mechanism Coarse and fine focusing system with tension adjustment
Fine focus precision 2um minimum increment
Z-axis movement 27mm
Illumination 12V / 20W Halogen illumination with intensity control
Transformer Internal
Power supply 220 - 240V (CE)
Accessories included Blue, yellow and green filters, dust cover and immersion oil
Length x Width x Height 245 x 190 x 380
Weight (kg) 7 kg




With built-in Koehler Illumination and a Quintuple Nosepiece as standard, the B3 series offers users a stable platform for professional microscopy. Available in Achromatic Super Contrast or full Plan optics, this popular Motic series offers something for everyone.



B3-223ASC
  Specification Details
Optical system Finite Optical System, 160mm
Observation tube Trinocular head, siedentopf type
Interpupillary distance 55-75mm
Inclination 30 inclined, 360 rotating
Eyepiece(s) WF 10X / 20mm
Diopter adjustment Diopter adjustment on the left eyetube, +/- 5 diopter
Nosepiece Reversed quadruple revolving nosepiece with click stops
Objective classification ASC Achromatic Super Contrast, DIN
Objective information

4X / 0.10 (WD 17mm), 10X / 0.25 (WD 6.4mm),

40X / 0.65/S (WD 0.45mm), 100X / 1.25/S-Oil (WD 0.14mm)

Objective mounting thread W 4/5" x 1/36" (RMS standard)
Stage Built-in low position coaxial mechnical stage with sample holder
Stage size 140 x 135mm
Mechanical stage X & Y range 78 x 50mm
Upper limit stop Preset but adjustable
Condenser  Focusable and centrable 1.25 N.A. Abbe Condenser with iris diaphragm and filter holder
Focus mechanism Coarse and fine focusing system with tension adjustment
Fine focus precision 2um minimum increment
Z-axis movement 27mm
Illumination 12V / 20W Halogen illumination with intensity control
Transformer Internal
Power supply 220 - 240V (CE)
Accessories included Blue, yellow and green filters, dust cover and immersion oil
Length x Width x Height 245 x 190 x 380
Weight (kg) 7 kg
